Flush mounting an Emmert patternmaker's vise
Click to enlarge
Here the bench top is upside down and I'm cutting the front apron away where the vise will mount. I put a scrap of veneer between the top and the saw to prevent scratching the finish.
Click to enlarge
Here's another shot from the bottom after a bit of sawing and chiseling.
Click to enlarge

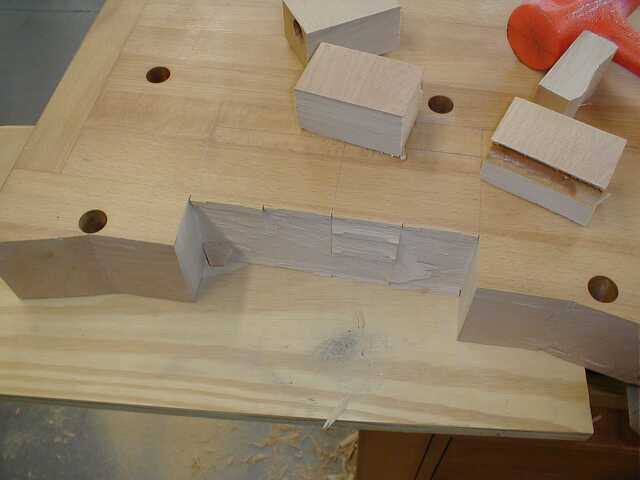

Here's a top view after cutting out another section. I cut down close to the line and knocked out large chunks with a chisel and mallet.
Click to enlarge

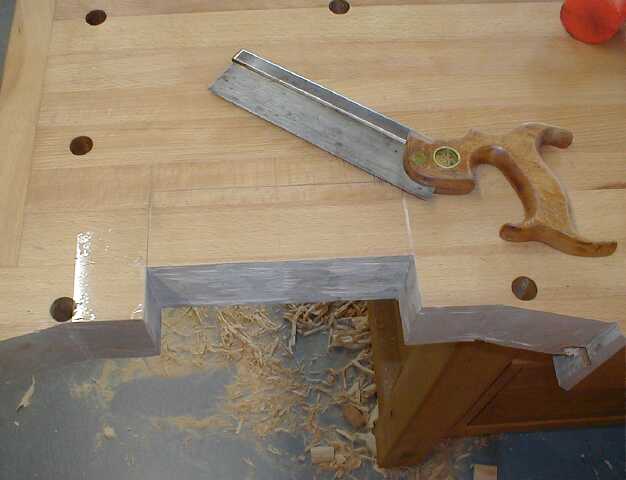

In preparation for chopping out the hinge plate mortise I cut the sides with a back saw.
Click to enlarge
After fitting the hinge plate I turned the top over and began roughing out the recess to clear the collar.
