Emmert's Universal Vise

Type U1 Photos

Do you have a Type U1 vise? I would like to use your photos here.

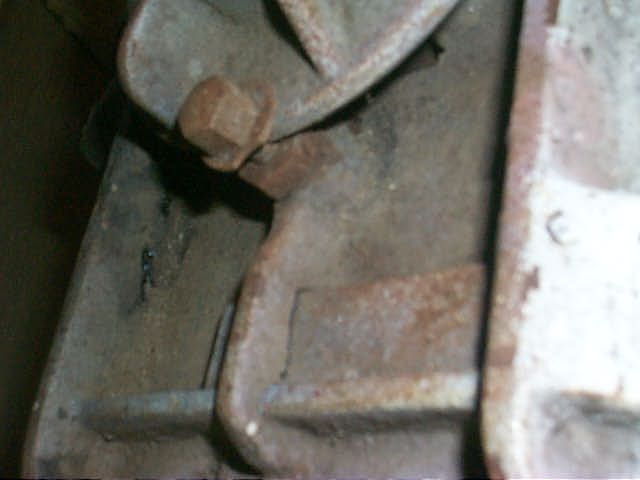

Front Jaw showing taper adjustment screws

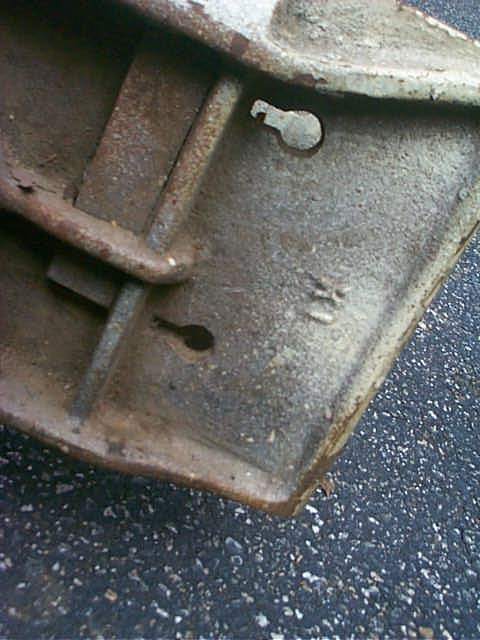

Front Jaw with short vise dog

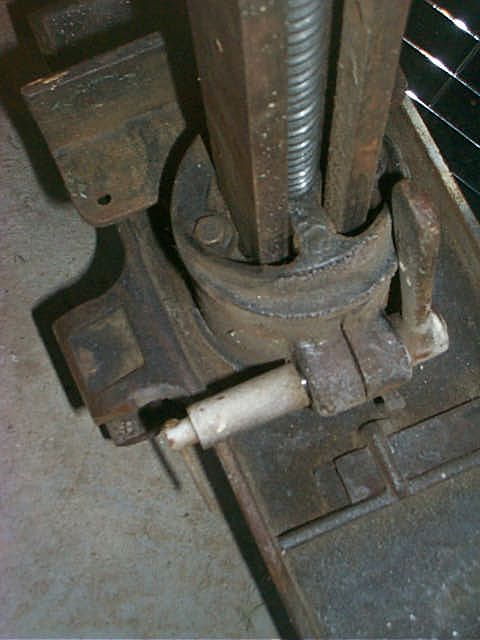

Collar resting on the adjustment srews.

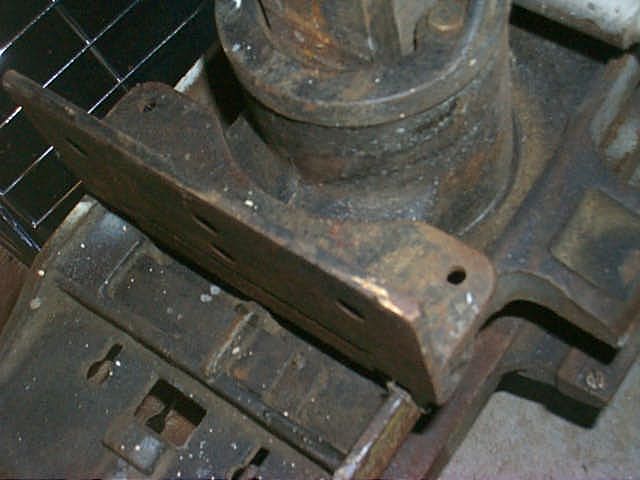

Back side of Collar

Note the heavy ring and slight lip at the edge.
